Examples

These are a few examples of pntr in use.

Alpha Mask

void pntr_examples_alphamask() {
    // Load the Tuffy font, and find the size of the text output.
    pntr_font* font = pntr_load_font_ttf("resources/tuffy.ttf", 80);
    pntr_vector textSize = pntr_measure_text_ex(font, "Alpha Mask!", 0);

    // Create a background to use as the alphamask.
    pntr_image* output = pntr_gen_image_gradient(textSize.x, textSize.y, PNTR_RED, PNTR_DARKGREEN, PNTR_BLUE, PNTR_PURPLE);

    // Create an alpha mask of text
    pntr_image* imageText = pntr_gen_image_text(font, "Alpha Mask!", PNTR_WHITE, PNTR_BLANK);

    // Apply the alpha mask to the image.
    pntr_image_alpha_mask(output, imageText, 0, 0);

    pntr_save_image(output, "pntr_examples_alphamask.png");

    // Clean up
    pntr_unload_font(font);
    pntr_unload_image(imageText);
    pntr_unload_image(output);
}

Fonts

void pntr_examples_fonts() {
    pntr_image* canvas = pntr_gen_image_color(400, 225, PNTR_RAYWHITE);

    // Default Font
    pntr_font* defaultFont = pntr_load_font_default();

    pntr_draw_image(canvas, defaultFont->atlas, 0, 0);

    // Font Drawing
    pntr_draw_text(canvas, defaultFont, "Default Font Example", 10, 50, PNTR_BLACK);

    // BM Font
    pntr_font* bmFont = pntr_load_font_bmf("resources/bmfont.png", " abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789.,!?-+/");
    pntr_draw_rectangle_fill(canvas, 0, 90, 200, 20, PNTR_BLACK);
    pntr_draw_text(canvas, bmFont, "BM Font Example", 10, 90, PNTR_WHITE);

    // TTY Font
    pntr_font* ttyFont = pntr_load_font_tty("resources/ttyfont-16x16.png", 16, 16,
        "\x7f !\"#$%&'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\\]^_`abcdefghijklmnopqrstuvwxyz{|}~");
    pntr_color background = pntr_get_color(0x0000caff);
    pntr_color border = pntr_get_color(0x8a8affff);
    pntr_draw_rectangle_fill(canvas, 0, 120, canvas->width, 60, border);
    pntr_draw_rectangle_fill(canvas, 0, 130, canvas->width, 40, background);

    const char* text = "*** TTY Font Example ***";
    int textWidth = pntr_measure_text(ttyFont, text);
    pntr_draw_text(canvas, ttyFont, text, canvas->width / 2 - textWidth / 2, 140, PNTR_WHITE);

    // TTF Font
    pntr_font* ttfFont = pntr_load_font_ttf("resources/tuffy.ttf", 28);
    const char* ttfText = "Привіт Світ!";
    pntr_vector textSize = pntr_measure_text_ex(ttfFont, ttfText, 0);
    pntr_draw_text(canvas, ttfFont, ttfText, 200, 20, PNTR_DARKPURPLE);

    // Resize the default font
    pntr_font* resizedFont = pntr_font_scale(defaultFont, 2.0f, 2.0f, PNTR_FILTER_NEARESTNEIGHBOR);
    pntr_draw_text(canvas, resizedFont, "Blue Text", 10, 65, PNTR_BLUE);
    pntr_unload_font(resizedFont);

    // Word-wrapped
    pntr_draw_rectangle(canvas, 225, 50, 150, 60, PNTR_BLUE);
    pntr_draw_text_wrapped(canvas, bmFont, "The quick brown fox jumps over the lazy dog.", 225, 50, 150, PNTR_RED);

    // draw_text_ex: printf-style formatted text
    int score = 42;
    float fps = 60.5f;
    pntr_draw_text_ex(canvas, defaultFont, 10, 190, PNTR_DARKGREEN, 0, "Score: %d  FPS: %.1f", score, fps);

    pntr_save_image(canvas, "pntr_examples_fonts.png");

    pntr_unload_font(defaultFont);
    pntr_unload_font(ttyFont);
    pntr_unload_font(bmFont);
    pntr_unload_font(ttfFont);
    pntr_unload_image(canvas);
}


void pntr_examples_image() {
    pntr_image* canvas = pntr_gen_image_color(400, 225, PNTR_RAYWHITE);
    pntr_image* image;
    pntr_image* resized;

    // Load an image
    image = pntr_load_image("resources/logo-128x128.png");

    // Resize the image
    resized = pntr_image_resize(image, image->width / 2, image->height / 2, PNTR_FILTER_NEARESTNEIGHBOR);

    // Draw an image on the canvas
    pntr_draw_image(canvas, image, 30, 30);

    // Draw a section of an image
    pntr_rectangle rect;
    rect.x = 25;
    rect.y = 16;
    rect.width = 65;
    rect.height = 58;
    pntr_draw_image_rec(canvas, image, rect, 170, 30);

    // Draw the resized image
    pntr_draw_image(canvas, resized, 170, 100);

    // Draw the resized image
    pntr_draw_image_flipped(canvas, image, 240, 30, true, false, true);

    pntr_save_image(canvas, "pntr_examples_image.png");

    pntr_unload_image(image);
    pntr_unload_image(resized);
    pntr_unload_image(canvas);
}

Resize

void pntr_examples_resize() {
    float size = 0.5f;
    pntr_image* originalImage = pntr_load_image("resources/logo-128x128.png");

    pntr_image* canvas = pntr_gen_image_color(400, 225, PNTR_RAYWHITE);

    pntr_draw_image(canvas, originalImage, 10, 10);

    pntr_draw_image_scaled(canvas, originalImage,
        canvas->width / 4 - originalImage->width * size / 2.0f,
        canvas->height / 2 - originalImage->height * size / 2.0f,
        size, size, 0.0f, 0.0f, PNTR_FILTER_NEARESTNEIGHBOR);

    pntr_draw_image_scaled(canvas, originalImage,
        canvas->width / 2 + canvas->width / 4 - originalImage->width * size / 2.0f,
        canvas->height / 2 - originalImage->height * size / 2.0f,
        size, size, 0.0f, 0.0f, PNTR_FILTER_BILINEAR);

    pntr_draw_image_scaled(canvas, originalImage,
        canvas->width / 2  - originalImage->width * 0.75f / 2.0f,
        canvas->height / 2 - originalImage->height * 0.75f / 2.0f,
        0.75f, 0.75, 0.0f, 0.0f, PNTR_FILTER_NEARESTNEIGHBOR);

    pntr_save_image(canvas, "pntr_examples_resize.png");

    pntr_unload_image(originalImage);
    pntr_unload_image(canvas);
}

Rotate

void pntr_examples_rotate() {
    pntr_image* canvas = pntr_gen_image_color(400, 225, PNTR_RAYWHITE);

    pntr_image* imageToRotate = pntr_load_image("resources/logo-128x128.png");

    // Draw the image rotated on screen using a nearest neighbor filter.
    pntr_draw_image_rotated(canvas, imageToRotate, 10, canvas->height / 2, 0.0f, 0, imageToRotate->height / 2.0f, PNTR_FILTER_NEARESTNEIGHBOR);

    // Draw the rotated image on the screen with a smooth filter.
    pntr_draw_image_rotated(canvas, imageToRotate, 140, canvas->height / 2, 32.0f, 0, imageToRotate->height / 2.0f, PNTR_FILTER_BILINEAR);

    // Draw the rotated image on the screen with a smooth filter.
    pntr_draw_image_rotated(canvas, imageToRotate, 280, canvas->height / 2, 180.0f, 0, imageToRotate->height / 2.0f, PNTR_FILTER_BILINEAR);

    pntr_save_image(canvas, "pntr_examples_rotate.png");

    pntr_unload_image(imageToRotate);
    pntr_unload_image(canvas);
}

Shapes

void pntr_examples_shapes() {
    pntr_image* canvas = pntr_gen_image_color(400, 225, PNTR_RAYWHITE);

    // Define some colors
    pntr_color lightGreen = PNTR_GREEN;
    lightGreen.rgba.a = 180;
    pntr_color lightBlue = PNTR_BLUE;
    lightBlue.rgba.a = 180;

    // Rectangles
    pntr_draw_rectangle_fill(canvas, 10, 30, 50, 50, PNTR_RED);
    pntr_draw_rectangle_fill(canvas, 20, 40, 50, 50, lightGreen);
    pntr_draw_rectangle_fill(canvas, 30, 50, 50, 50, lightBlue);

    pntr_draw_rectangle_thick(canvas, 10, 120, 50, 50, 5, PNTR_RED);
    pntr_draw_rectangle_thick(canvas, 20, 130, 50, 50, 5, PNTR_GREEN);
    pntr_draw_rectangle_thick(canvas, 30, 140, 50, 50, 5, PNTR_BLUE);

    // Circle
    pntr_draw_circle(canvas, 110, 60, 21, PNTR_RED);
    pntr_draw_circle_fill(canvas, 160, 60, 21, PNTR_BLUE);

    pntr_draw_ellipse(canvas, 110, 100, 20, 10, PNTR_GREEN);
    pntr_draw_ellipse_fill(canvas, 160, 100, 20, 10, PNTR_ORANGE);

    // Line
    pntr_draw_line(canvas, 200, 50, 250, 80, PNTR_DARKGREEN);

    // Triangle
    pntr_draw_triangle_fill(canvas,
        250, 50,
        300, 80,
        350, 20, PNTR_PURPLE);

    // Rectangle Gradient
    pntr_draw_rectangle_gradient(canvas, 100, 120, 80, 80, PNTR_RED, PNTR_GREEN, PNTR_BLUE, PNTR_BLACK);

    // Polygon
    pntr_vector points[10];
    points[0] = PNTR_CLITERAL(pntr_vector) {210, 110};
    points[1] = PNTR_CLITERAL(pntr_vector) {215, 130};
    points[2] = PNTR_CLITERAL(pntr_vector) {240, 140};
    points[3] = PNTR_CLITERAL(pntr_vector) {200, 160};
    pntr_draw_polygon_fill(canvas, points, 4, PNTR_BLUE);
    pntr_draw_polygon(canvas, points, 4, PNTR_BLACK);

    // Arc
    int radius = 40;
    pntr_draw_arc_fill(canvas, 300, 120, radius, 90.0f, 180.0f, radius * 1.5f, PNTR_ORANGE);
    pntr_draw_arc(canvas, 300, 120, radius, 90.0f, 180.0f, radius *1.5f, PNTR_RED);

    // Polyline
    points[0] = PNTR_CLITERAL(pntr_vector) {240, 80};
    points[1] = PNTR_CLITERAL(pntr_vector) {260, 100};
    points[2] = PNTR_CLITERAL(pntr_vector) {220, 110};
    points[3] = PNTR_CLITERAL(pntr_vector) {240, 130};
    pntr_draw_polyline(canvas, points, 4, PNTR_PURPLE);

    // Line Curve
    pntr_draw_line_curve(canvas, points[0], points[1], points[2], points[3], 40, PNTR_DARKBLUE);

    pntr_save_image(canvas, "pntr_examples_shapes.png");
    pntr_unload_image(canvas);
}

Sprite

void pntr_examples_sprite() {
    pntr_image* canvas = pntr_gen_image_color(400, 225, PNTR_RAYWHITE);

    // Load the image
    pntr_image* scarfy = pntr_load_image("resources/scarfy.png");

    pntr_rectangle frameRec;
    frameRec.x = 0;
    frameRec.y = 0;
    frameRec.width = scarfy->width / 6;
    frameRec.height = scarfy->height;

    frameRec.x = 1 * (float)scarfy->width / 6;
    pntr_draw_image_rec(canvas, scarfy, frameRec, 10, canvas->height / 2 - frameRec.height / 2);

    frameRec.x = 3 * (float)scarfy->width / 6;
    pntr_draw_image_rec(canvas, scarfy, frameRec, 120, canvas->height / 2 - frameRec.height / 2);

    frameRec.x = 5 * (float)scarfy->width / 6;
    pntr_draw_image_rec(canvas, scarfy, frameRec, 250, canvas->height / 2 - frameRec.height / 2);

    pntr_save_image(canvas, "pntr_examples_sprite.png");

    pntr_unload_image(scarfy);
    pntr_unload_image(canvas);
}

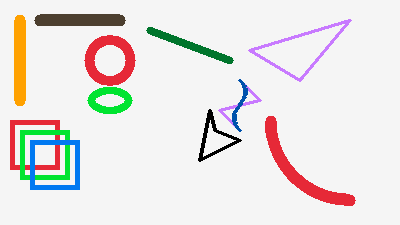

Thick

void pntr_examples_thick() {
    pntr_image* canvas = pntr_gen_image_color(400, 225, PNTR_RAYWHITE);

    // Rectangles
    pntr_draw_rectangle_thick(canvas, 10, 120, 50, 50, 5, PNTR_RED);
    pntr_draw_rectangle_thick(canvas, 20, 130, 50, 50, 5, PNTR_GREEN);
    pntr_draw_rectangle_thick(canvas, 30, 140, 50, 50, 5, PNTR_BLUE);

    // Circle
    pntr_draw_circle_thick(canvas, 110, 60, 21, 10, PNTR_RED);

    pntr_draw_ellipse_thick(canvas, 110, 100, 20, 10, 8, PNTR_GREEN);

    // Line
    pntr_draw_line_thick(canvas, 150, 30, 230, 60, 8, PNTR_DARKGREEN);

    // Triangle
    pntr_draw_triangle_thick(canvas,
        250, 50,
        300, 80,
        350, 20, 5, PNTR_PURPLE);

    // Polygon
    pntr_vector points[10];
    points[0] = PNTR_CLITERAL(pntr_vector) {210, 110};
    points[1] = PNTR_CLITERAL(pntr_vector) {215, 130};
    points[2] = PNTR_CLITERAL(pntr_vector) {240, 140};
    points[3] = PNTR_CLITERAL(pntr_vector) {200, 160};
    pntr_draw_polygon_thick(canvas, points, 4, 5, PNTR_BLACK);

    // Arc
    int radius = 80;
    pntr_draw_arc_thick(canvas, 350, 120, radius, 90.0f, 180.0f, radius * 1.5f, 12, PNTR_RED);

    // Polyline
    points[0] = PNTR_CLITERAL(pntr_vector) {240, 80};
    points[1] = PNTR_CLITERAL(pntr_vector) {260, 100};
    points[2] = PNTR_CLITERAL(pntr_vector) {220, 110};
    points[3] = PNTR_CLITERAL(pntr_vector) {240, 130};
    pntr_draw_polyline_thick(canvas, points, 4, 5, PNTR_PURPLE);

    // Line Curve
    pntr_draw_line_curve_thick(canvas, points[0], points[1], points[2], points[3], 40, 5, PNTR_DARKBLUE);

    // Vertical line
    pntr_draw_line_vertical_thick(canvas, 20, 20, 80, 12, PNTR_ORANGE);

    // Horizontal line
    pntr_draw_line_horizontal_thick(canvas, 40, 20, 80, 12, PNTR_DARKBROWN);

    pntr_save_image(canvas, "pntr_examples_thick.png");
    pntr_unload_image(canvas);
}
